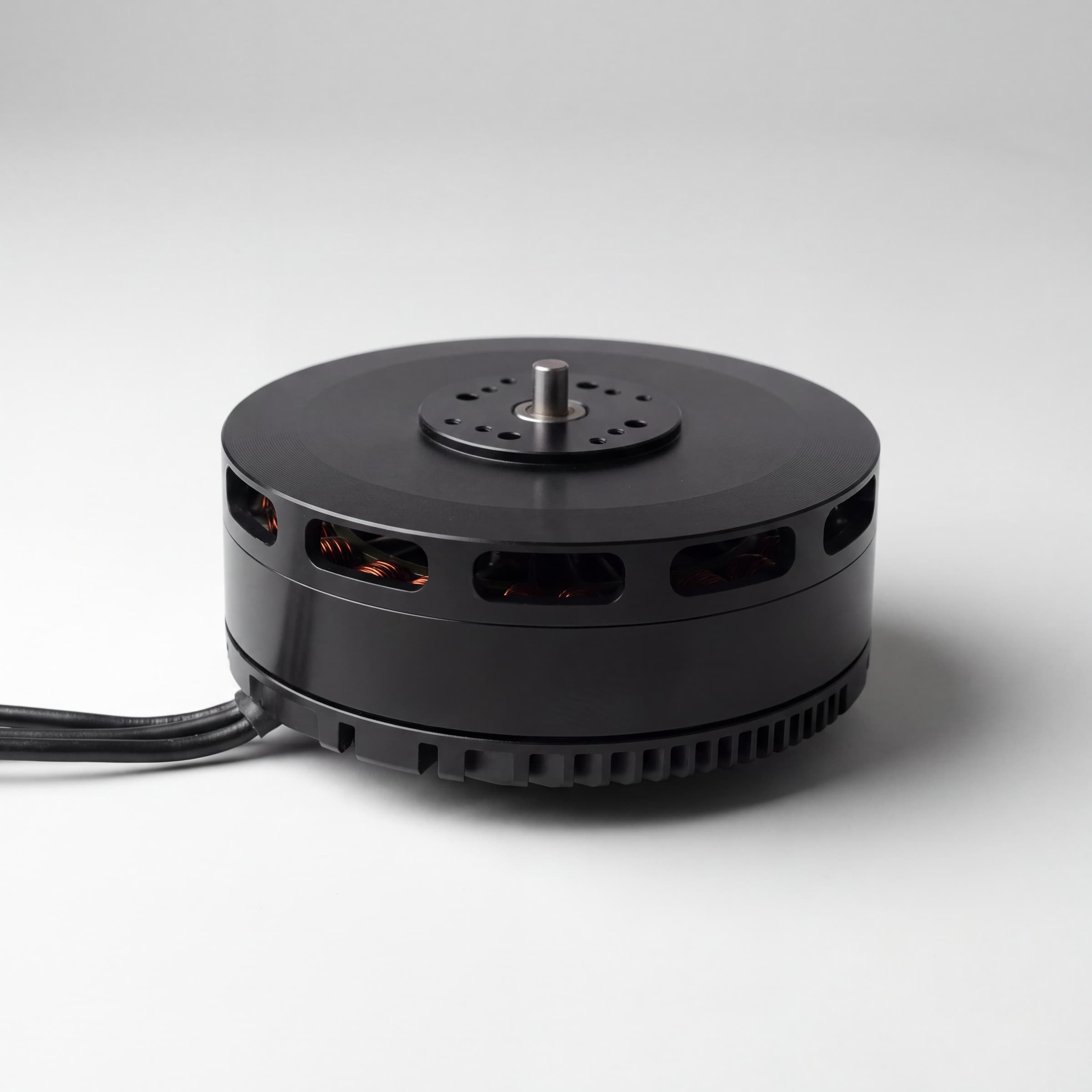

60 Series
Ø60 mm+ frame
The heavy end of the scale. Direct-drive torque for gimbals, turrets and propulsion test work.
Specification
Pick the stack. Read the frame.
Ø60 × 35 mm6035
Winding
Propeller
1855 (18 x 5.5 in)
ESC
120 A 14S
Battery
14S 16000 mAh
- KV value
- 110 rpm/V
- Rated voltage
- 12-14S LiPo (44.4-58.8 V)
- Max continuous current
- 100 A
- Peak current (10s)
- 150 A
- Max power (180s)
- 5200 W
- Max thrust
- 39000 gf
- Idle current
- 6 A
- Internal resistance
- 6 mΩ
Documents
Test data.
6035 KV110 · 1855 (18 x 5.5 in) · 52 V pack
| Throttle | Current (A) | RPM | Thrust (gf) | Power (W) | Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|
| 50% | 18.9 | 2630 | 10450 | 985 | 10.61 | 39 |
| 65% | 35.6 | 3420 | 17203 | 1849 | 9.30 | 48 |
| 75% | 50.1 | 3950 | 22578 | 2607 | 8.66 | 55 |
| 85% | 67.7 | 4470 | 28639 | 3521 | 8.13 | 64 |
| 100% | 100.0 | 5260 | 39000 | 5200 | 7.50 | 78 |
Every unit is measured before it ships; the report that travels with the motor carries the same sweep for your serial number.
Measured data
Off the bench, not the brochure.
Static thrust sweeps for all 3 models in this frame — 3 windings in total, exactly as recorded on the test stand.
Max static thrust8.42 kgf
Max speed4,899 RPM
Max current77.72 A
Input power3.55 kW
Peak drive eff.81.5% @ 50%
No-load current0.5 A
Phase resistance84.31 mΩ
Weight incl. lead324.2 g
2265 · 45.63 - 45.95 V
| Throttle (%) | RPM | Voltage (V) | Current (A) | Thrust (kgf) | Torque (N·m) | Temp (°C) | Elec. power (W) | Shaft power (W) | Drive eff. (%) | Prop eff. (gf/W) | System eff. (gf/W) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 3,380 | 45.95 | 12.54 | 3.575 | 1.327 | 26.7 | 576.2 | 469.7 | 81.5 | 7.6 | 6.20 |
| 60 | 3,829 | 45.92 | 19.68 | 4.725 | 1.766 | 27.4 | 903.7 | 708.1 | 78.4 | 6.7 | 5.23 |
| 70 | 4,245 | 45.87 | 30.04 | 6.004 | 2.237 | 27.8 | 1377.8 | 994.4 | 72.2 | 6.0 | 4.36 |
| 80 | 4,602 | 45.80 | 43.68 | 7.196 | 2.705 | 28.9 | 2000.5 | 1303.6 | 65.2 | 5.5 | 3.60 |
| 90 | 4,774 | 45.72 | 59.84 | 7.824 | 2.947 | 31.4 | 2736.1 | 1473.3 | 53.8 | 5.3 | 2.86 |
| 100 | 4,899 | 45.63 | 77.72 | 8.416 | 3.205 | 34.4 | 3546.4 | 1644.2 | 46.4 | 5.1 | 2.37 |
Mechanical interface
- Stator size
- Ø62 × 10 mm
- Motor size
- Ø68.8 × 36 mm
- Shaft diameter
- Ø6 mm (M6)
- Configuration
- 18N24P
- Lead
- 14 AWG, 670 mm
- Weight incl. lead
- 324.2 g
- Suitable props
- 22" multirotor
Static bench results as measured; no endurance or thermal-soak qualification is implied.
